Asus WL 520-G vs Mikrotik 133 ABG [Access Point] - Revised [was RB 532 A]
Posted by a. Rahman Isnaini r. Sutan on May 9, 2008

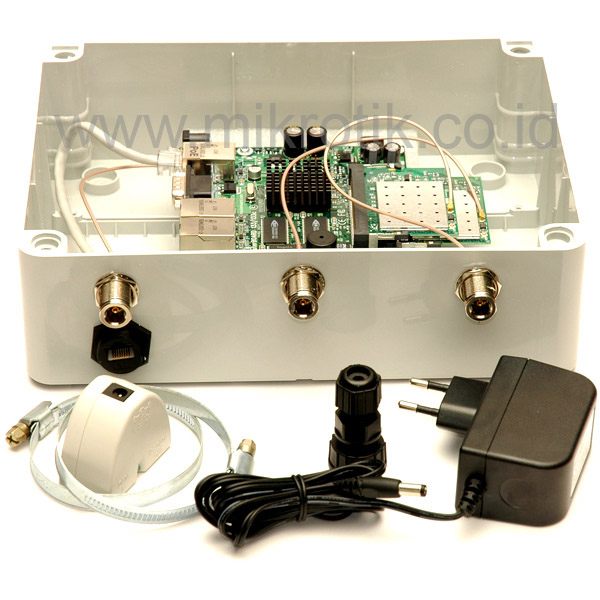

Wireless Outdoor RB133 (3 bh AP ABG)
 klik pada gambar untuk melihat gambar lebih besar |
Menggunakan Routerboard 133 (MIPS CPU, 32MB DDR RAM, 64MB NAND Storage) dengan RouterOS WISP-AP/CF. Memiliki 3 buah port ethernet (1 untuk PoE), dan 3 slot miniPCI, dengan 3 buah card miniPCI wireless card A+B+G dalam kotak outdoor besar (cukup untuk memasang 3 buah ethernet insulator dan 3 N-Famale bulhead connector pada box). |
- Routerboard 133 dengan outdoor box
- 3 port ethernet (1 untuk PoE)
- 3 slot minipci
- 3 buah Atheros MiniPCI Wireless 802.11a+b+g 54Mbps 2.4/5GHz
- 1 Insulator Ethernet (klik di sini jika butuh tambahan)
- Power Adaptor 18 V
- Power over Ethernet Spliter
- 2 metal ring
- Lisensi Mikrotik RouterOS WISP-AP/CF.
Spec Routerboard 133 :
- CPU: MIPS 32 4Kc based 175MHz embedded processor
- Memory: 32MB DDR onboard memory chip
- Root loader: RouterBOOT, 1Mbit Flash chip
- Data storage: 64MB onboard NAND memory chip
- Ethernet ports: 3 10/100 Mbit/s Fast Ethernet port supporting Auto-MDI/X
- Serial ports: One DB9 RS232C asynchronous serial port
- LEDs: Power, user LED
- Watchdog: IDT internal SoC hardware watchdog timer
- Power options: Power over Ethernet: 16..28V DC (except power over datalines); Power jack: 9..28V DC; Overvoltage protection
- Dimensions: 117mm x 105mm (4.61 in x 4.13 in)
- Temperature: Operational: -20°C to +70°C (-4°F to 158°F)
- Humidity: Operational: 70% relative humidity (non-condensing)
- Currently supported OS: RouterOS
Asus WL-520G Specification :
| Product Specification: | |
| Enhanced security | 64/128 bit WEP support Work with Windows XP SP1 security WPA functions Driver upgradeable to support weak-key avoidance, TKIP, 802.11i, and 802.1x |
| Easy installation and management | Seamless Microsoft XP zero-configuration integration with advanced utilities and common GUI for legacy OSEasy to use with WHQL certified drivers for Windows XP, Windows 2000, Windows ME, Windows 98 SE and Linux Redhat (version7.1 or later)
Profile Auto-Switch function enables seamless roaming between home, office and caf. |
| ASUS WL-520g Retail Package | WL-520g wireless router Power adapter External antenna Driver and Utility CD RJ-45 cable Quick Start Guide |
| Dimensions (WxDxH) | 4.3 in x 6.5 in x 1.2 in |
| Frequency Band | 2.4 GHz |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g |
| Network / Transport | PPTP, NTP, PPPoE |
| OS Support | Support Windows XP/98/ME/2000 |
| Warranty | 1 Year Manufacturer |
========================================================
Both above products have been finally tested for RT/RW net Access Point Solution.
Scheme :
